FUNCTIONAL FEATURES
Arm span of 2.13m,strong load capacity, large working range and high flexibility.
Fast operation speed,repeated positioning accuracy, suitable for handing, assembly,grinding and other scenarios.
Built-in cables and trachea to reduce external interference, more convenient for customers to use and improve operation efficiency.
The safety emergency stop board independent of the control system is configured, and imported forced disconnect relay is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.
Built-in three-phase filter to effectively isolate external interference and prevent internal interference output.
The body provides dual air pipes to meet the needs of transportation.
Optimized for packaging and palletizing scenarios, with precise operation and strong power,making code work easy.

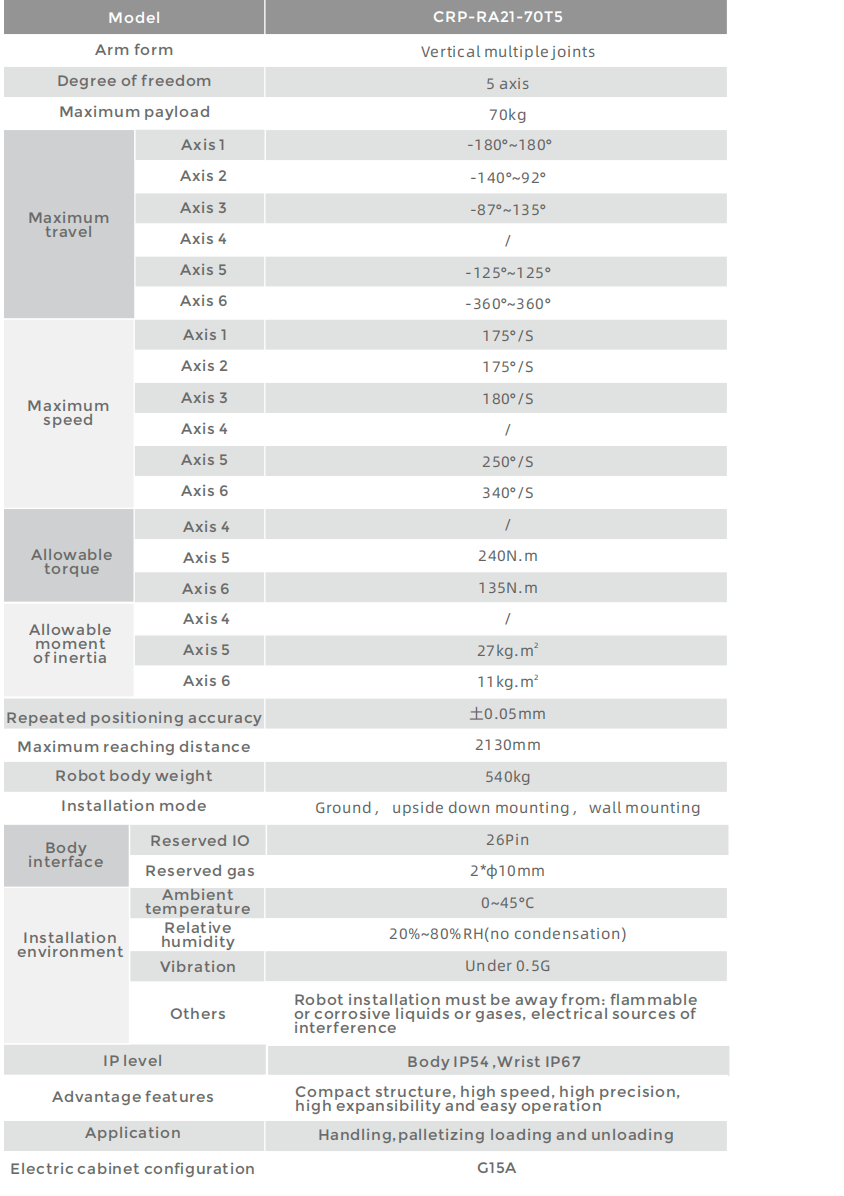

ROBOT BODY TECHNICAL PARAMETERS

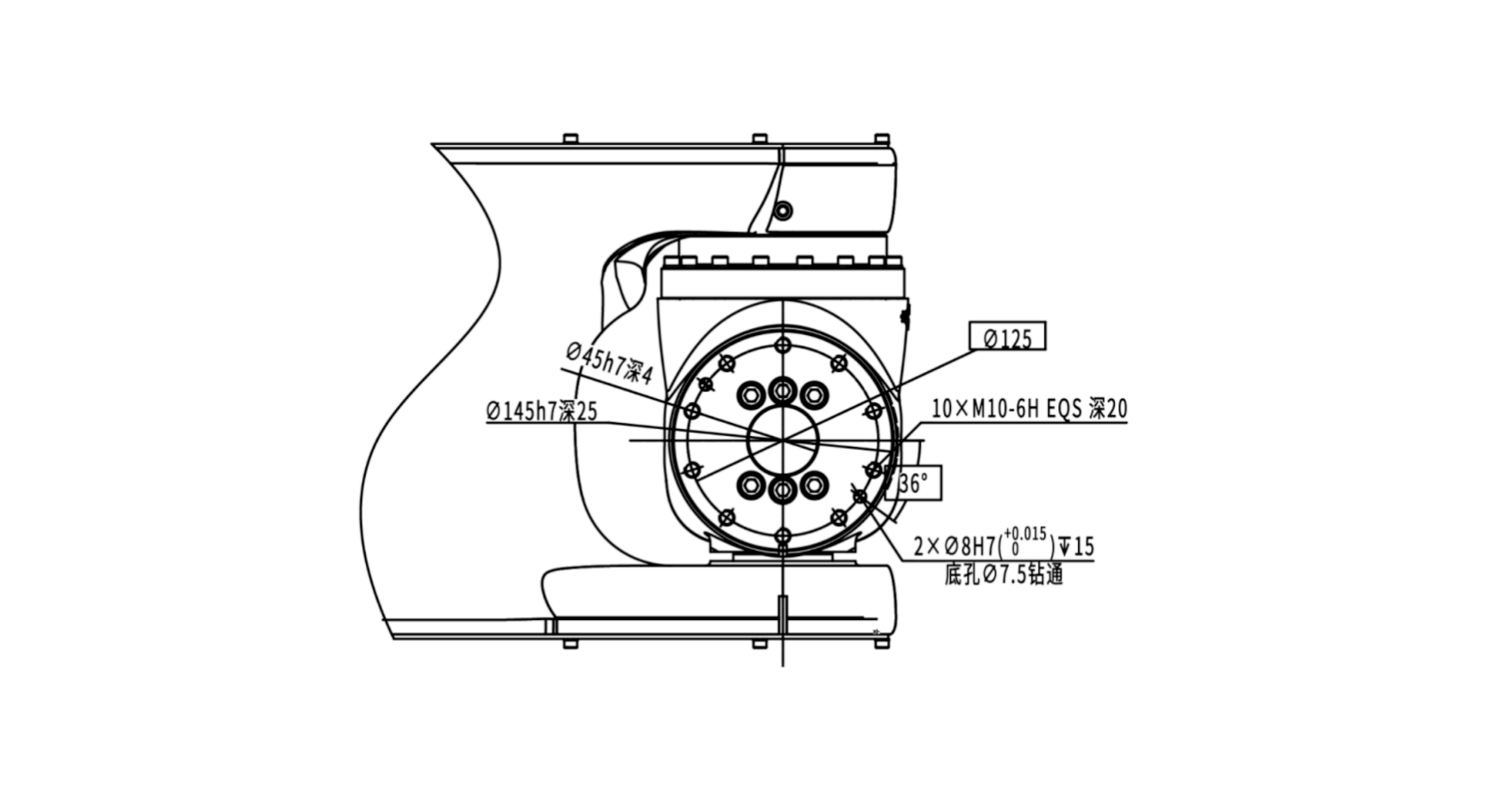

INSTALLATION INTERFACE DIAGRAM

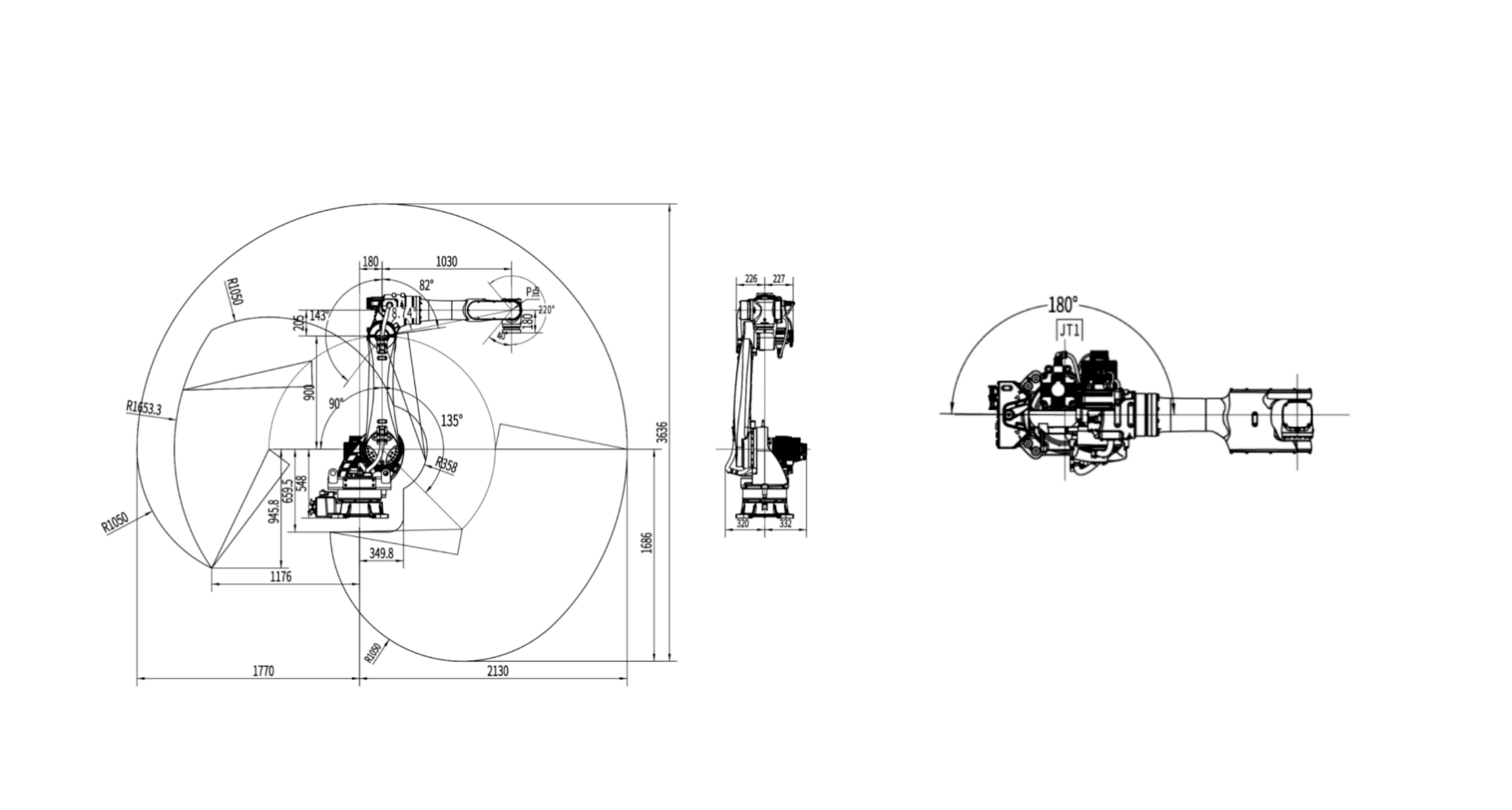

MOTION RANGE DIAGRAM
