CHARACTERISTICS OF ROBOT PERFORMANCE
A specialized interface for laser welding,featuring controllable power, wire feeding,soft start and stop, pre-laser emission and decay, wire sticking detection, pre-wire extraction, and wire replenishment, etc.
Rigid, high precision, low jitter.
It can control the wire feeding of servo or stepper motors.
Using a vertical teaching pendant, the efficiency of robot programming is higher.
Compact electrical cabinet, small in size, can be integrated into the laser host.
Single-phase 220V input power supply,easy and quick to connect.
Built-in UPS, supports power regeneration after outage.

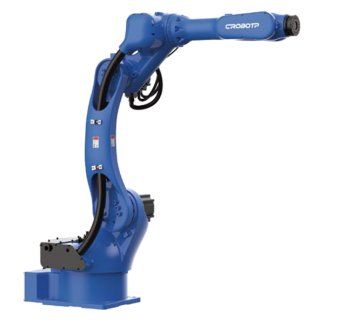

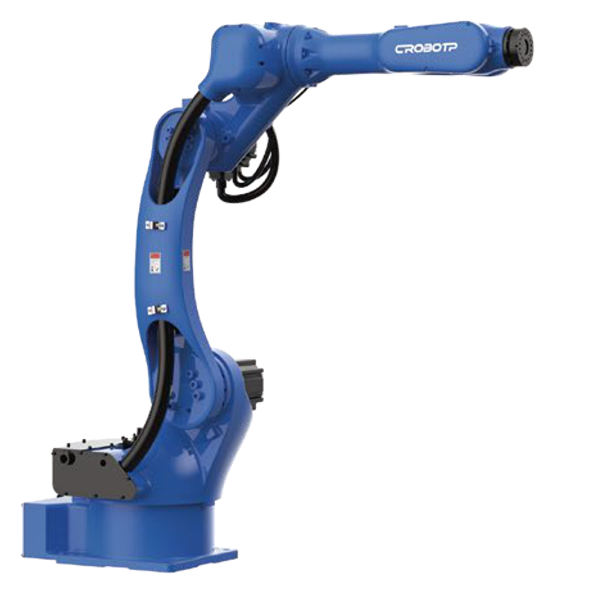

Entity: RA15-12-J/RA18-20-J/RA20-12-J
Electrical cabinet: G5A
Teaching Pendant: Vertical Teaching Pendant, cable length 6 meters
Operation box: 2 (with 5-meter cable)
Control cabinet and main body interconnection cable 5 meters
Welding wire drum and stand
Optional two external axes

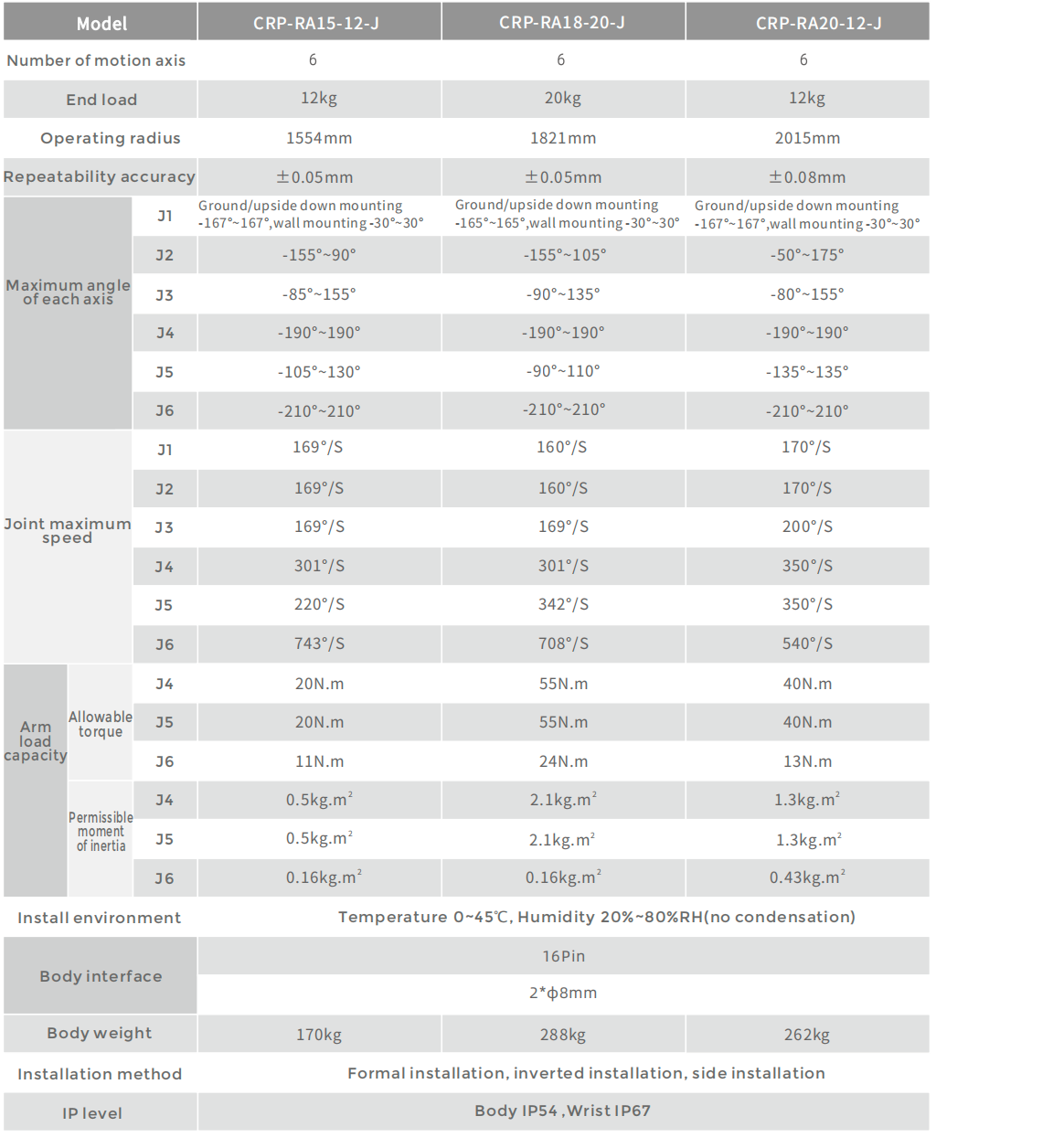

ROBOT BODY TECHNICAL PARAMETERS

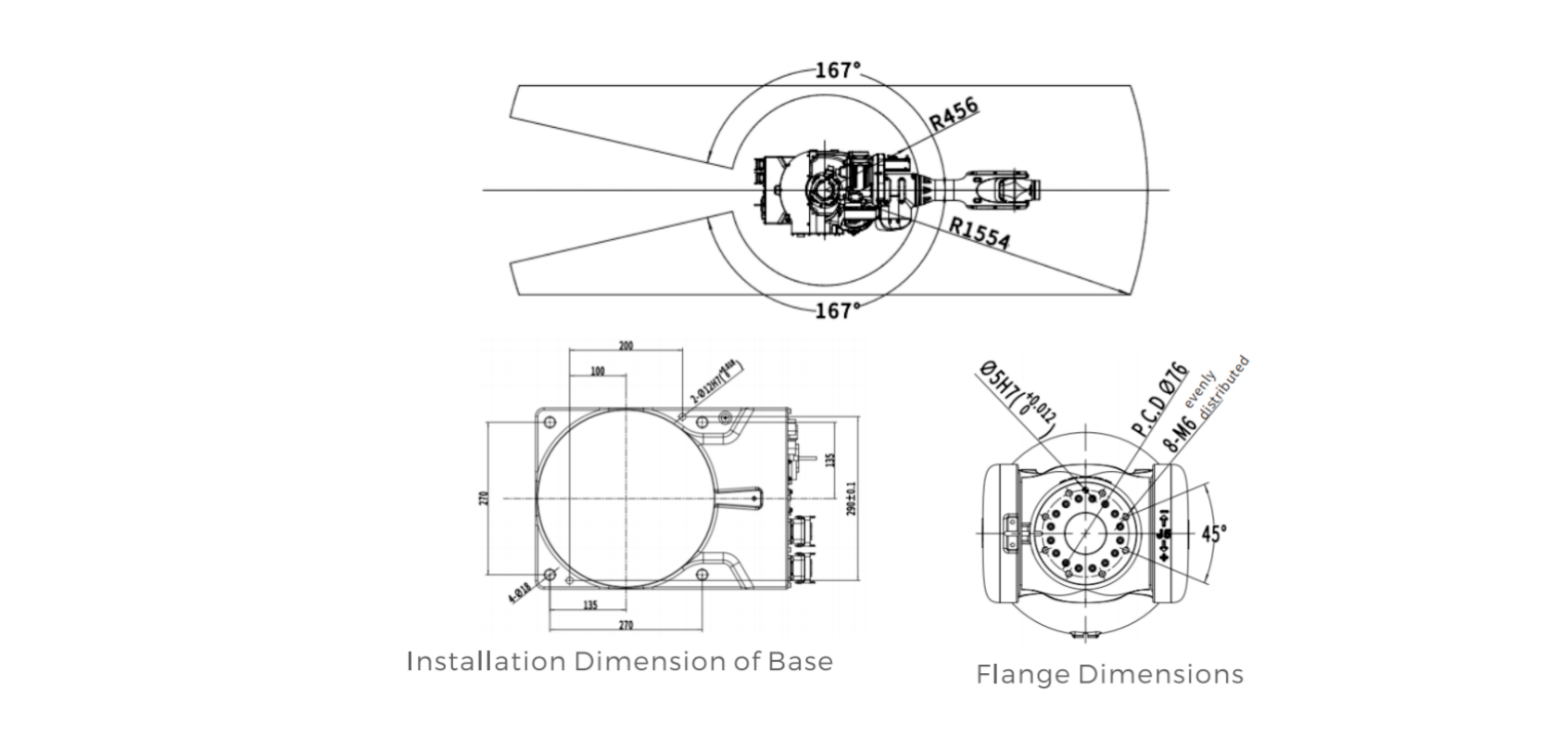

Installation interface diagram

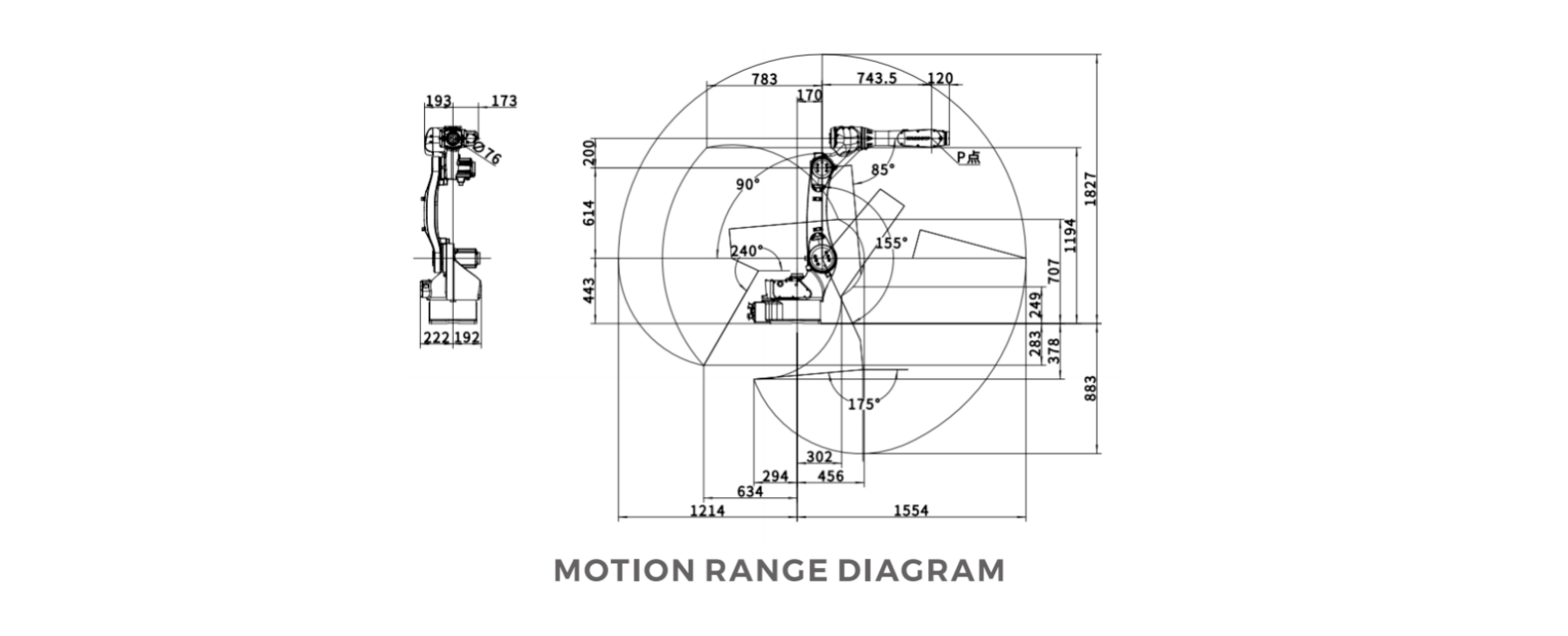

The movement range ofthe robot
