FUNCTIONAL FEATURES
High speed, high precision, higher efficiency.the whole body adopts all-aluminum body design, lighter quality than the same level of products, RA09-12 series relative to RA09-07 series operation speed increased by 30%, standard door trajectory 0.42s, repeated precision positioning accuracy 0.03mm, to achieve rapid effect, improve production capacity;
Compact structure, flexible deployment. product motor and cable use built-in form, more compact structure, covers an area of 255mm*255mm, flexible deployment in narrow space;
New design, higher protection, stronger rigidity;
The body adopts a high-rigidity design scheme with higher rigidity and full internal closure scheme. The forearm protection grade reaches IP67, the load is larger and the range is wider. The robot load is 10kg and 12kg, the arm span is 900mm and 1200mm, and the robot wrist has higher torque and inertia, stronger load bearing capacity and wider application scenarios;
New CrobotpOS software, better control performance. The new CrobotpOS software is compatible with the functions of the old X8 software, and the new background tasks, Socket protocol, PC software, laser welding and other functions are added. The motion control adopts high-level control algorithm, which makes the trajectory more flexible and the beat faster.

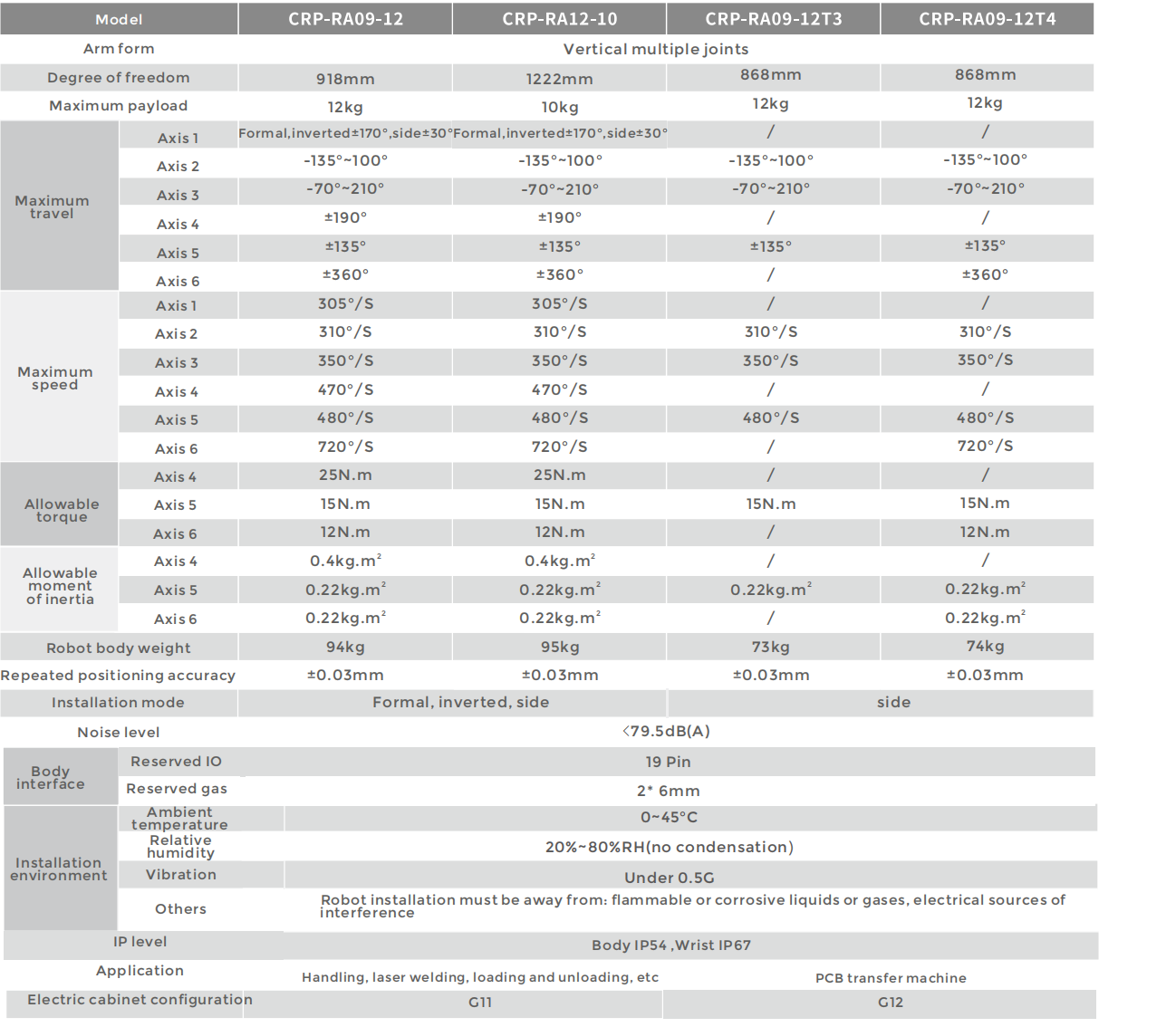

ROBOT BODY TECHNICAL PARAMETERS

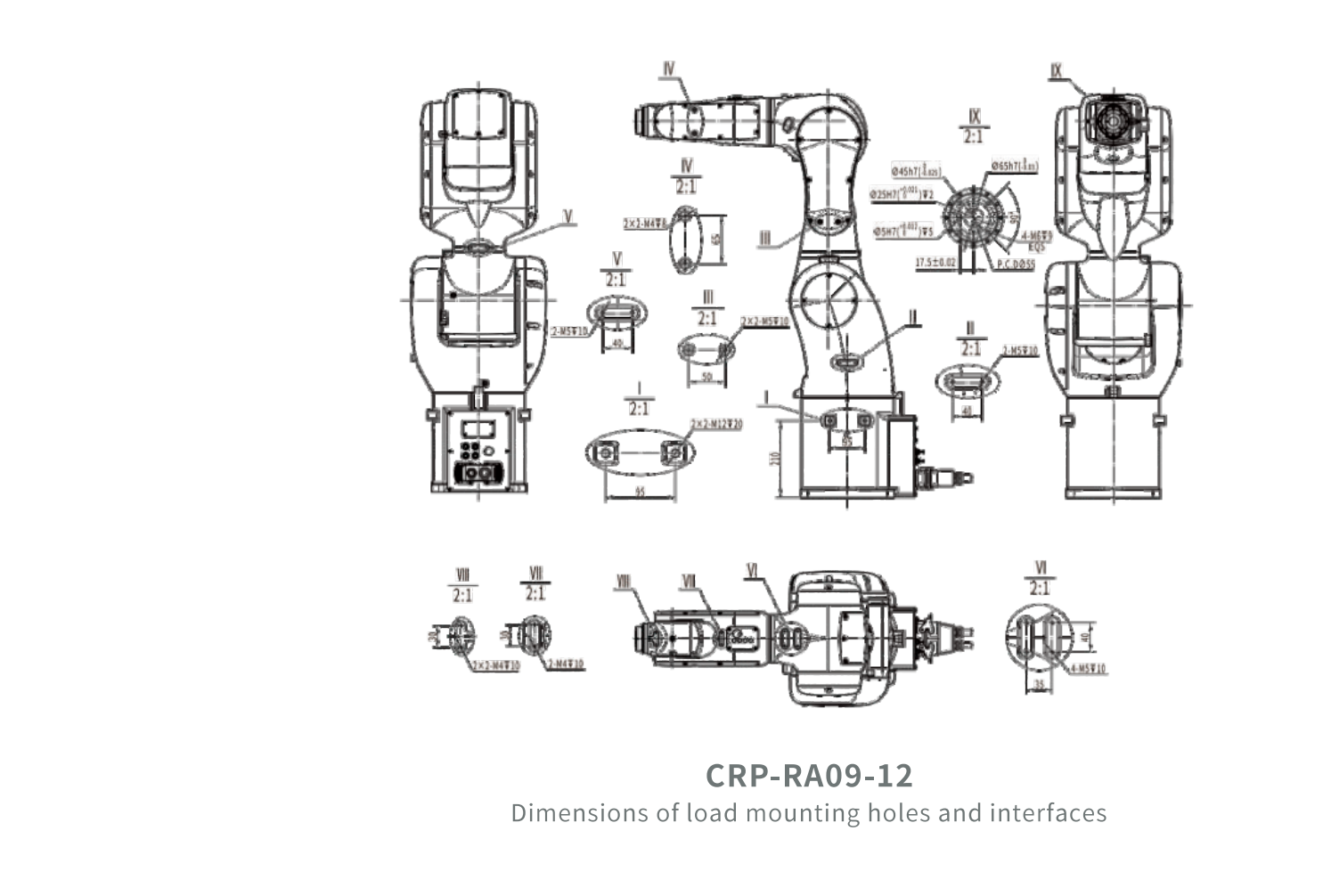

INSTALLATION INTERFACE DIAGRAM
MOTION RANGE DIAGRAM
